Laser Head

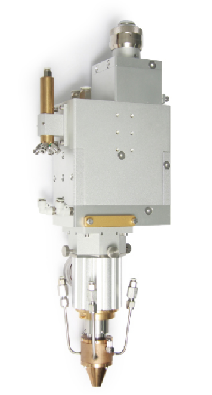

High Speed Laser Cladding Head
- Product ID：Laser Head
- QQ：
- Phone: +86 15902166728
- Tel: +86 15902166728
- Email: steven.shi@joyusol.com
- Time: 2024-08-08 17:10:53
- FEEDBACK

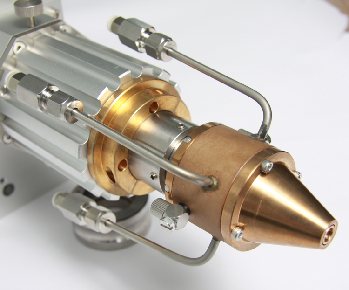

Suitable for high-power industrial applications, with diverse interface settings and optimized optical system design, it can be paired with various fiber optic or semiconductor lasers. Multiple powder feeding nozzles are combined to achieve higher cladding efficiency during the cladding process.
Interface: QBH, LLK, QD, LOE, Q + | Numerical aperture NA: less than 0.25 |
Collimation: 100, 150, 200mm (optional) | Gathering distance: 250, 300, 400mm (optional) |
Applicable wavelength: 900-1100nm | Magnification ratio: 3, 4, 5, 6 (optional) |
Powder feeding type: Coaxial powder feeding | Powder tube width: 10, 15, 18, 20, 25mm |
Powder particle size: 50-120um | Powder spot size: 10 * 3, 15 * 3, 20 * 3, 30 * 3mm |
Maximum power usage: 20KW | Cooling method: full water cooling |
Gas protection mode: double air knife protection | Protective gas: nitrogen or chlorine |
Working distance: 20-25mm (customized) | Quality: 8.8KG |
