Laser Head
Paraxial Laser Cladding Head
- Product ID：Laser Head
- QQ：
- Phone: +86 15902166728
- Tel: +86 15902166728
- Email: steven.shi@joyusol.com
- Time: 2024-08-08 17:29:11
- FEEDBACK

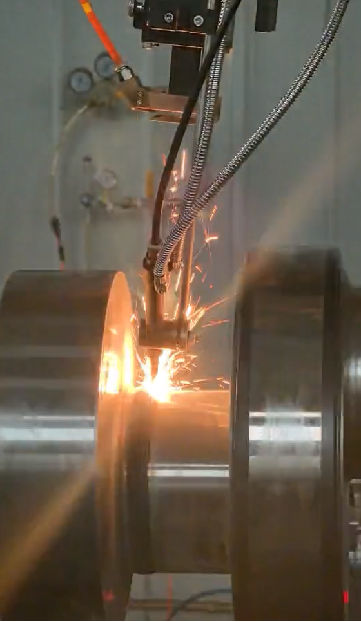

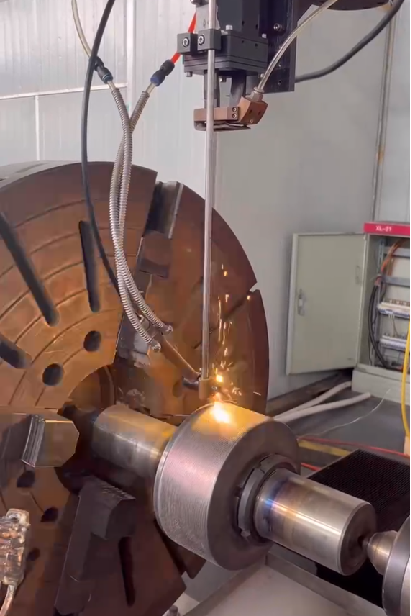

The cladding head is suitable for medium and high power industrial applications, with diversified interface settings and optimized optical system design, making it compatible with various optical fibers or semiconductor lasers. Linear and rectangular light spots can be matched with broadband nozzles to achieve high cladding efficiency during the cladding process.
Power: up to 6KW |
Numerical aperture NA: less than 0.25 |
Applicable wavelength: 900-1100nm (semiconductor, YAG, fiber laser) |
Focal length: 150, 200, 250, 300mm (optional) |
Collimation: 80, 100, 120, 300mm (optional) |
Fiber optic interface: QBH, LLK, QD |
Powder feeding nozzle: side axis, coaxial, broadband |
Quality: 3.8 KG |
