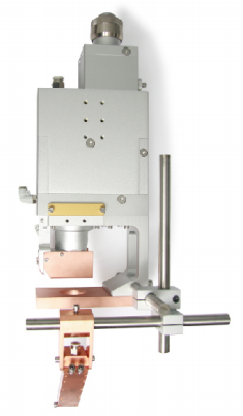

Wideband Laser Cladding Head
- Product ID：Laser Head
- QQ：
- Phone: +86 15902166728
- Tel: +86 15902166728
- Email: steven.shi@joyusol.com
- Time: 2024-08-08 16:28:15
- FEEDBACK

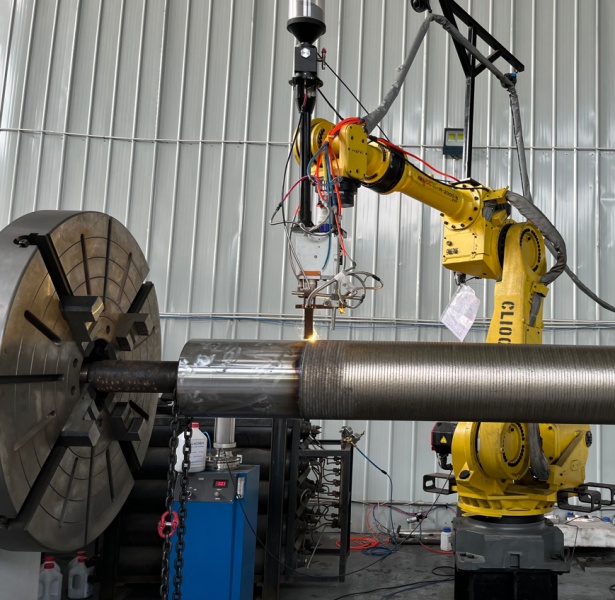

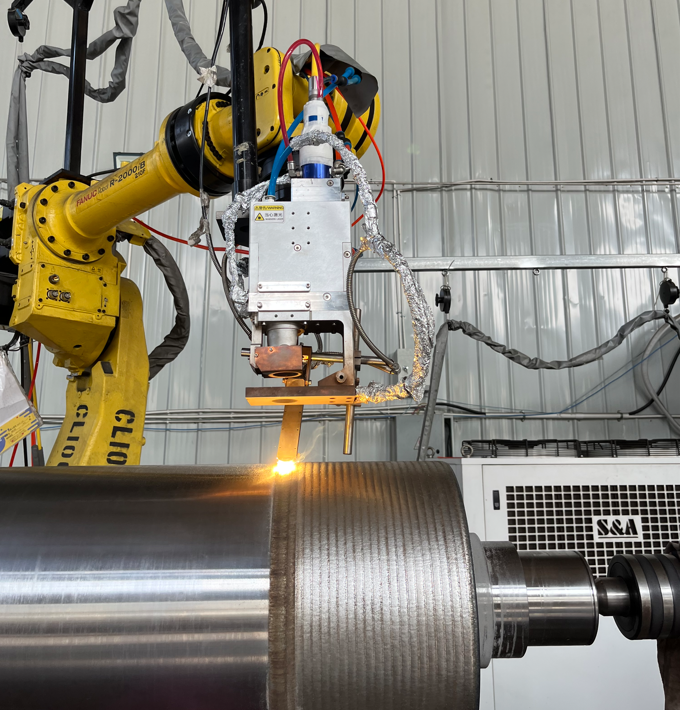

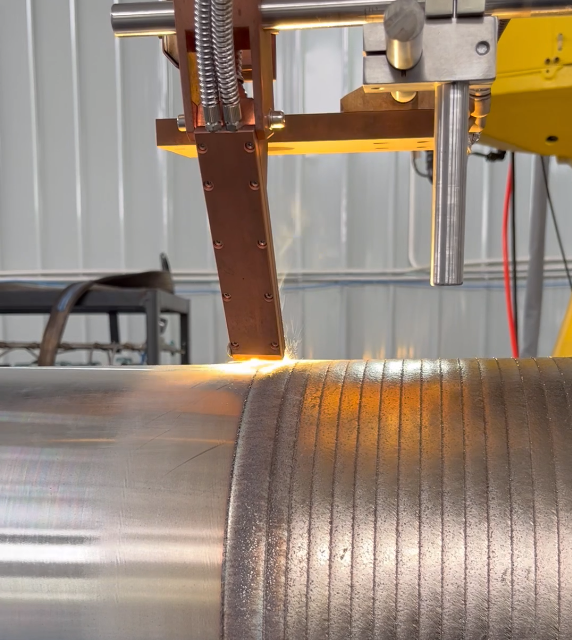

The cladding head is suitable for medium and high power industrial applications, with diversified interface settings and optimized optical system design, making it compatible with various optical fibers or semiconductor lasers. The broadband powder feeding nozzle is matched to achieve higher cladding efficiency during the cladding process.
Interface: QBH, LLK, QD, LOE, Q+ | Numerical aperture NA: less than 0.25 |
Collimation: 100, 150, 200mm (optional) | Gathering distance: 250, 300, 400mm (optional) |
Applicable liquid length: 900-1100nm | Magnification ratio: 3, 4, 5, 6 (optional) |
Powder feeding type: broadband side axis, broadband coaxial | Powder tube variability: 10, 15, 18, 20, 25mm |
Powder particle size: 50-120um | Pink class size: 10 * 2, 10 * 3, 15 * 3, 20 * 3mm |
Maximum power consumption: 20KW | Cooling method: full water cooling |
Gas protection method: double air knife protection | Protective gas: nitrogen or argon |
Working distance: 20-25mm (customized) | Quality: 8.8KG |
