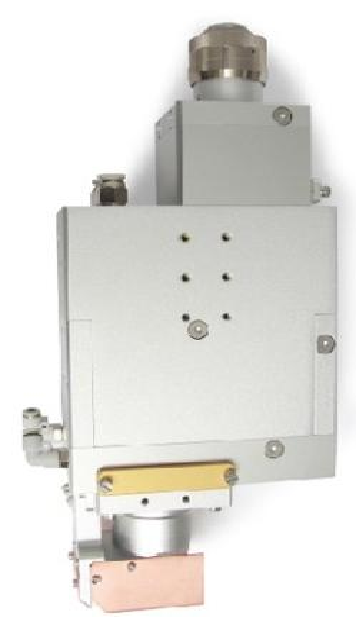

High Power Laser Hardening Head
- Product ID：Laser Head
- QQ：
- Phone: +86 15902166728
- Tel: +86 15902166728
- Email: steven.shi@joyusol.com
- Time: 2024-08-08 16:04:38
- FEEDBACK

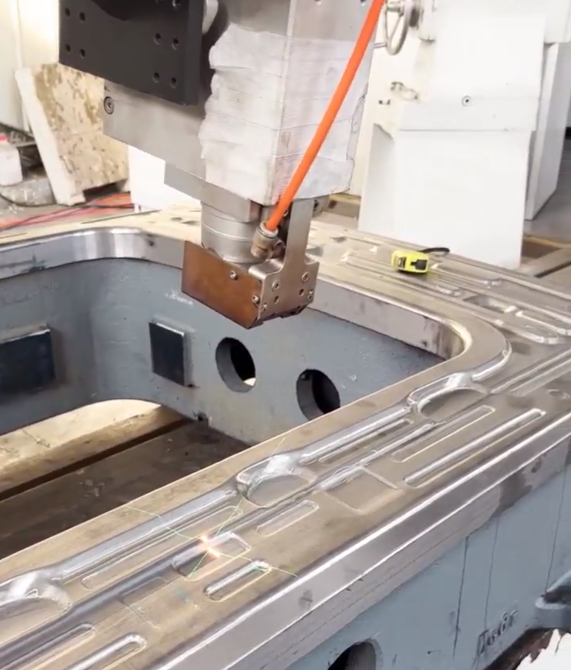

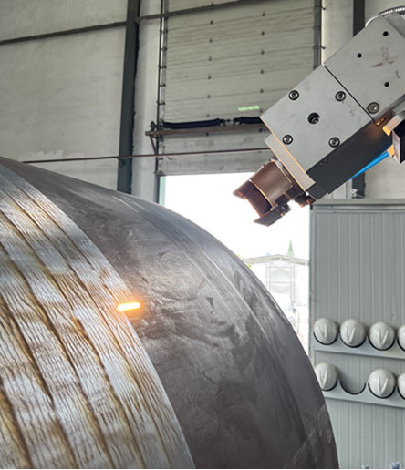

It is suitable for the hardening head of medium and high power industrial applications. The internal water-cooled aspheric copper mirror (integrating mirror) can be used for high power laser hardening and plastic welding by configuring different components. The wide light spot can meet the requirements of processing large areas for unit power.
Interface: QBH, LLK, QD, LOE, Q + | Numerical aperture NA: less than 0.25 |
Straightening: 100, 150, 200mm (optional) | Gathering distance: 250, 300, 400mm (optional) |
Suitable wavelength: 900-1100nm | Magnification ratio: 3, 4, 5, 6 (optional) |
Light spot size: 3 * 3, 3 * 2, 5 * 2, 8 * 2, 10 * 2, 12 * 2, 15 * 3, 20 * 3, 25 * 3, 30 * 3, 40 * 3, 50 * 3, 60 * 3, 80 * 3mm (customizable) | |
Maximum power consumption: 20KW | Cooling method: full water cooling |
Gas protection mode: double air knife protection | Protective gas: dry compressed air |
Working distance: according to the focal length (customized) | Quality: 6.8KG |
