Laser Head

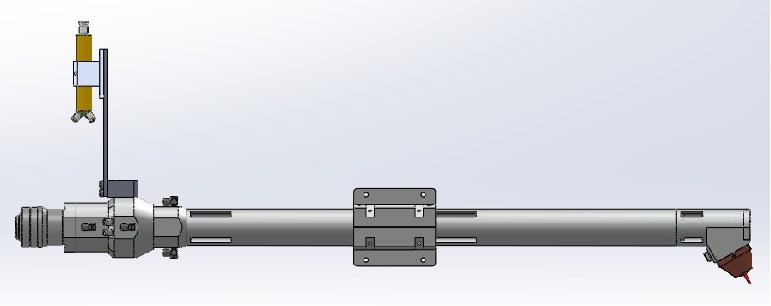

Inner Laser Cladding Head
- Product ID：Laser Head
- QQ：
- Phone: +86 15902166728
- Tel: +86 15902166728
- Email: steven.shi@joyusol.com
- Time: 2024-08-08 17:51:07
- FEEDBACK

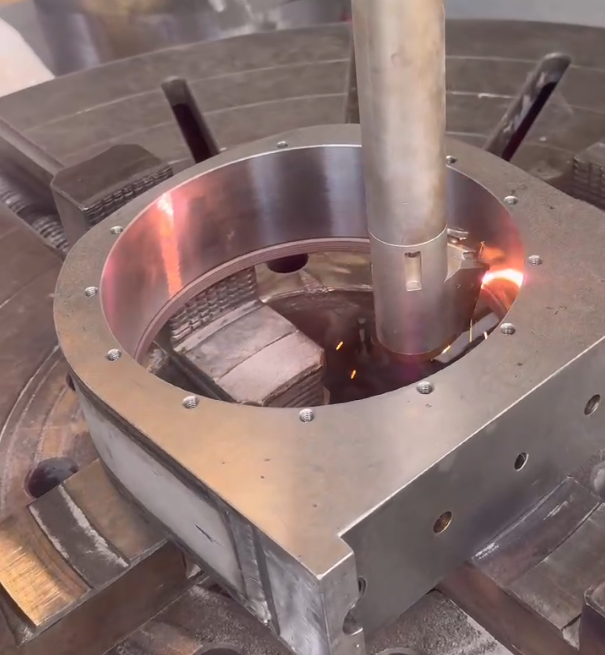

Suitable for medium to high power industrial applications, the inner hole cladding and hardening head adopts a water-cooled aspherical copper mirror (integrating mirror) internally. By configuring different components, it can be used for medium to high power laser inner hole quenching, inner hole surface treatment, and inner hole cladding. Wide spot inner hole cladding and quenching can meet the requirements for unit power when processing large areas.
Interface: QBH, LLK, QD, LOE, Q + | Numerical aperture NA: less than 0.25 |
Collimation: 60, 80, 100mm (optional) | Gathering distance: 60, 80, 100, 120mm (optional) |
Applicable wavelength: 900-1100nm | Magnification ratio: 3, 4, 5, 6 (optional) |
Powder feeding type: coaxial powder feeding (2 way, 3 way, 4 way, ring, broadband) | Cladding hardening inner hole depth range: ≤ 2m |
Cladding inner hole diameter: ≥90mm | Powder particle size: 50-120um |
Maximum power usage: 10KW | Cooling method: full water cooling |
Powder spot size: diameter 3-5mm, square light spot 3 * 3 or 4 * 4mm | Protective gas: nitrogen or chlorine |
Diameter of powder tube: 0.8mm, 1mm, 1.2mm, 1.5mm | Quality: 6.8KG |
Hardening light spot size: 3 * 3, 3 * 2, 5 * 2, 8 * 2, 10 * 2, 12 * 2, 15 * 3, 20 * 3mm (can be customized) | |
Gas protection method: double air knife protection | Working distance: depending on the focal length (customized) |
